About MultiTech.

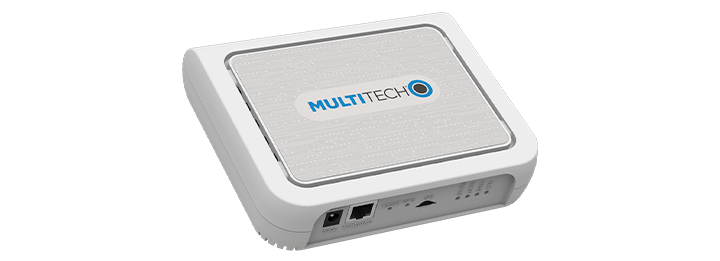

MultiTech Conduit^® AP.

Access Point for LoRa^® Technology (MTCAP Series).

The MultiTech Conduit® AP provides deep in-building connectivity and improved performance for network operators and enterprises connecting thousands of IoT assets by harnessing the power of the LoRaWAN® protocol.

Easy to deploy, the Conduit AP access point extends LoRa® connectivity in hotels, convention centres, offices, shops and other facilities providing coverage in difficult to reach areas cell tower or rooftop deployments may not penetrate.

The Conduit AP offers a development environment for software developers and IT professionals alike. mPower™ edge intelligence features an easy-to-use graphical interface set-up and includes a built-in LoRa Network Server and Packet Forwarder to connect locally clustered assets on a private LoRaWAN network directly to your choice of IoT data platforms. The Conduit AP extends complex processing to the edge to reduce upstream communication and operational costs and provides Ethernet IP backhaul or optional 4G-LTE IP backhaul.

Commercial buildings and retail facilities often present unique installation challenges, specifically with regard to the Access Point location and the availability of power.  The Conduit AP offers models with several power options including Power over Ethernet that overcome these challenges and simplify the installation process.

• Provide improved Service Level Agreements for LoRa
• Affordable LoRa connectivity in or around commercial buildings
• Configurable Ethernet and 4G-LTE interfaces for primary or secondary WAN
• Quick and easy to deploy
• Cloud-based device management for over-the-air network diagnostics and configuration


• Ethernet RJ-45 10/100 BaseT for IP backhaul
• Optional 4G-LTE IP backhaul
• LoRa omni-directional internal antenna with +2 dBi gain for 868/915 MHz ISM band
• Built-in LoRa network server and packet forwarder

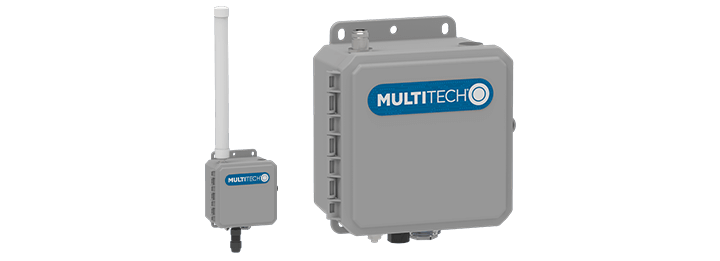

MultiTech Conduit^® IP67 200 Series.

IP67 Conduit for outdoor LoRa^® deployments (MTCDTIP2 Series).

MultiTech Conduit® IP67 200 Series Base Station is a ruggedised IoT gateway solution, specifically designed for outdoor LoRa® public or private network deployments. This highly scalable and certified IP67 solution is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat, supporting LoRaWAN® applications in virtually any environment. The enhanced Conduit IP67 solution can support thousands of LoRaWAN certified end nodes, including the MultiTech mDot™ and xDot®. This flexible solution provides durable, low-power, wide area connectivity in support of M2M and IoT applications for both LoRa service providers and individual enterprises wanting to expand their LoRa network coverage.

Designed for easy deployment, the solution includes an IP67 enclosure, external LoRa antenna to improve outdoor range and Ethernet or optional 4G-LTE backhaul.

It can be deployed as part of an existing telecommunications tower, individual stand or wall mount.

• Greatly expands LoRa network coverage
• External antenna increases LoRa connectivity to remote assets
• Improved design enhancing thermal performance and easy external port access to SIM and Ethernet connectors
• Cloud-based device management for over-the-air network diagnostics and configuration


• ISM band scanning for optimum LoRa performance
• GNSS for location coordinate information
• Certified for North American 915 MHz and European 868 MHz ISM bands

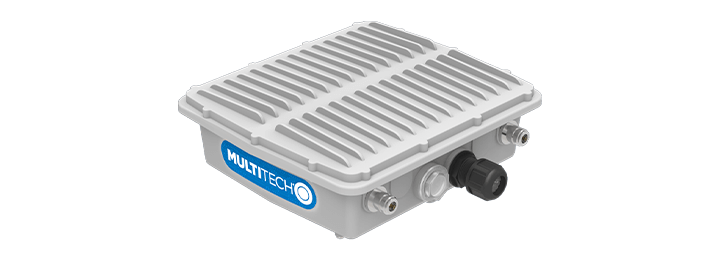

MultiTech Conduit^® IP67 Base Station.

IP67 Conduit for outdoor LoRa® deployments (MTCDTIP Series).

The MultiTech Conduit® IP67 Base Station is a ruggedised IoT gateway solution, specifically designed for outdoor LoRa® public or private network deployments.  The highly scalable and certified Conduit IP67 gateway is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat. The device supports LoRaWAN® applications in virtually any environment. Leveraging the Conduit, this device can support thousands of LoRaWAN-certified end nodes, including MultiTech Reveal™ sensors, mDot™* and xDot®*. This flexible solution provides durable, low-power, wide area connectivity in support of M2M and IoT applications for both LoRa service providers and individual enterprises wanting to expand their LoRa network coverage.

Bundled for easy deployment, the solution includes a Conduit with a LoRa mCard™, IP67 enclosure and LoRa antenna to improve outdoor range. It also provides a choice of cellular 4G-LTE or Ethernet backhaul options.  The LoRa transceiver can be deployed as part of an existing telecommunications tower, individual stand or wall mount.

^{* Represents ideal network configuration and equipment set up. Results vary depending on payload amount, transmission frequency, spreading factor used, as well as terrain, RF interference and obstruction type (e.g., metal, cement, etc.)}

• External high gain antenna increases LoRa connectivity to remote assets
• Greatly expands LoRa network coverage
• High quality, low cost support
• Cloud-based device management for over-the-air network diagnostics and configuration


• Supports 868 MHz and 915 MHz ISM bands
• LoRaWAN compliant
• Supports public and private LoRa network deployments
• POE (Power over Ethernet) for easy deployment and maintenance
• Lightning arrestor and grounding mechanism for protection against storm damage (optional accessory - sold separately)

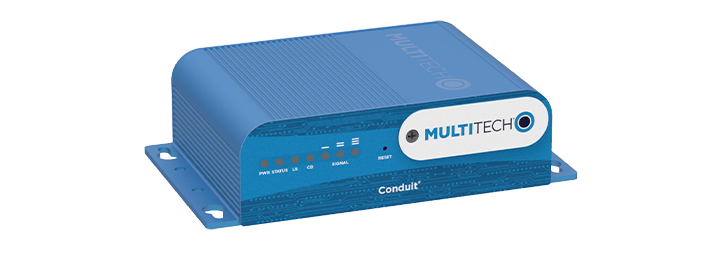

MultiTech Conduit^®.

Programmable LoRa® gateway for the Internet of Things (MTCDT Series).

The Conduit® is the industry’s most configurable, manageable, and scalable LoRa® gateway for industrial IoT applications. Network connectivity choices to your preferred data management platform include carrier approved 4G-LTE, 3G and Ethernet.

Network engineers can remotely configure and optimise their Conduit performance through DeviceHQ®, the world’s first IoT Application Store and Device Management platform. Conduit features Wi-Fi/Bluetooth/Bluetooth Low Energy (BT/BLE), GNSS and two accessory card slots that enable users to plug in MultiTech mCard™ accessory cards supporting their preferred wired or wireless interface to connect to a wide range of assets locally to the gateway.

Available options for the Conduit LoRa gateway include a LoRaWAN® mCard capable of supporting thousands of LoRaWAN certified end nodes, including Radio Bridge sensors and MultiTech mDot™ and xDot® long range RF modules connected to remote sensors or appliances.

Quick-to-deploy and easy to customise and manage, the Conduit LoRa gateway is the perfect choice for your IoT application.

• Incredible asset management range– Up to 10 miles line of sight, 1 to 3 miles into buildings
• Integration support with a variety of partner and private cloud platforms
• 2-way communication over any certified cellular network for cost effective global deployments
• Cloud-based device management for over-the-air network diagnostics and configuration

• Certified for 868 MHz ISM bands
• Support for European 14 dBm
• ISM band scanning for optimum LoRa® performance
• Listen Before Talk LoRa operating protocol
