SHUTTLE

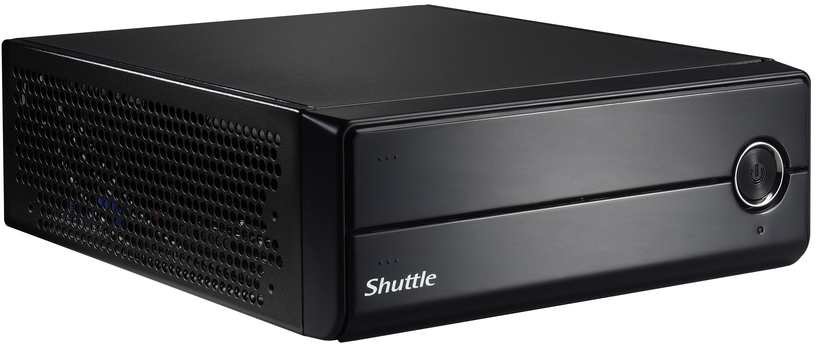

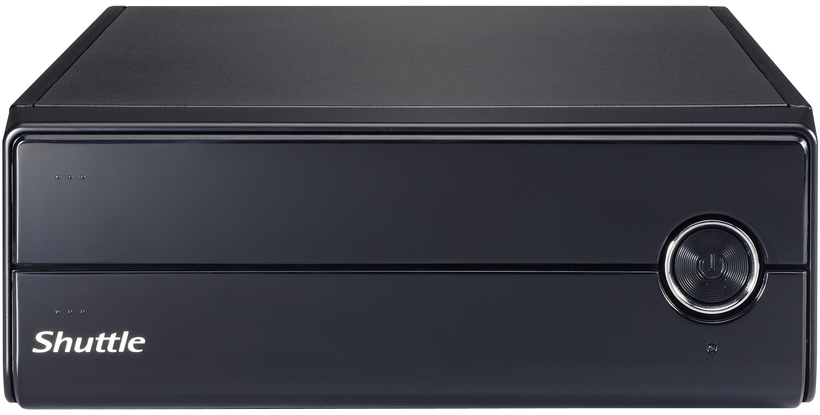

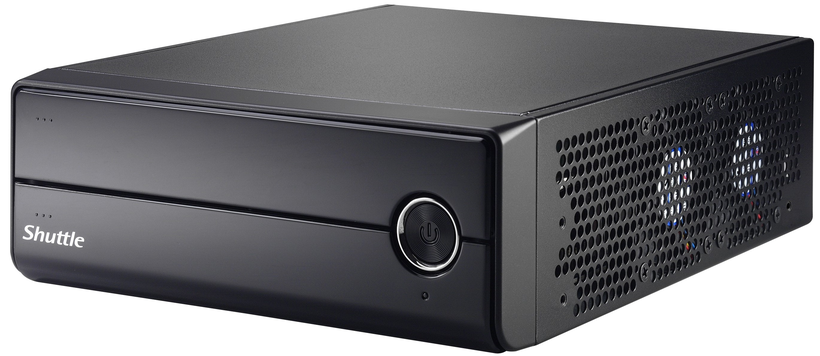

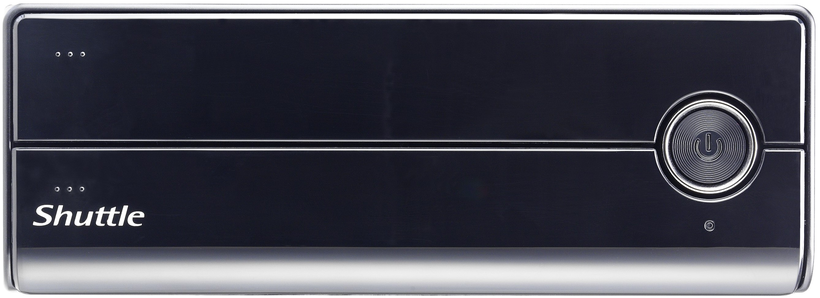

Shuttle XPC slim XH610V Barebone PC
Chassis type: Mini housing - Processor model: Optional - RAM: Optional - Graphics: Intel UHD Graphics - Operating system: -... more
The product is no longer available.
The Shuttle XPC slim XH610V Barebone PC is packed into a robust steel housing and can be fitted with an optical drive (available separately). Its heat pipe cooling system ensures quiet and reliable operation, while extensive connectivity options allow for a great number of use cases from typical office use to industrial applications.
Highlights:
- Space-saving design
- Supports two digital displays with Ultra HD resolution
- Power-On after Power Fail feature
- Versatile connectivity
Features:
Power supply: 120 W (fanless)
Includes:
- Multi-lingual installation instructions
- DVD with Windows drivers and PDF manuals
- Pre-installed SATA and power cables for a 2.5" drive and a slimline drive
- AC adapter with 1.8 m power cable with Schuko plug
- Protective cover for the CPU socket (do not use this if a heat pipe or cooler is installed in the system)
- Pre-installed CPU heat pipe cooling system with thermal gel
- Screws
Please note:
Please get in touch with us if you are interested in a custom configuration.
Shuttle XPC slim XH610V Barebone PC
Product | |
---|---|
Product type | Barebone PC |
Manufacturer’s warranty | 3-year bring-in (see manufacturer's website for details) |
Processor | |
Processor family | Optional |
Processor model | Optional |
Memory | |
RAM | Optional |
RAM (max.) | 64 GB |
Graphics | |
Graphics | Intel UHD Graphics |
Storage | |
SSD | Optional |
Connectivity | |

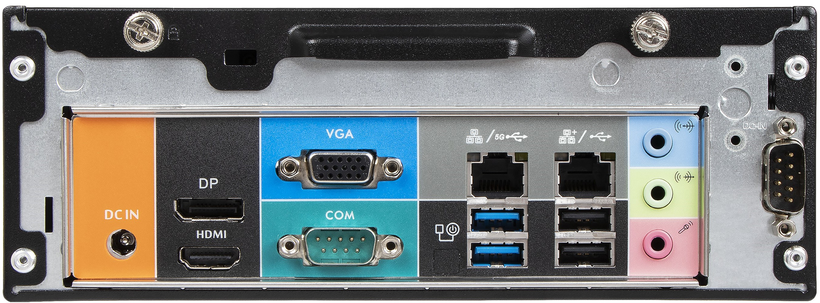

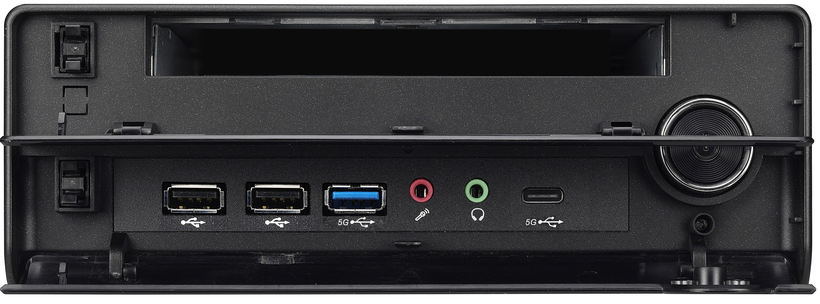

Connectors | 1 x DC in, 1 x audio in, 1 x audio out, 1 x DisplayPort, 1 x HDMI, 1 x VGA, 1 x headphones, 2 x RJ45, 2 x microphone, 2 x serial, 3 x USB 3.2 Type-A, 3 x USB 3.2 Type-C, 4 x USB 2.0 Type-A |
Wireless | Optional |
Operating system | |
Operating system | - |
Security | |
Security | Kensington standard slot |
Features | |
AC adapter | 120 W, External |
Physical properties | |
Chassis type | Mini housing |
Dimensions (W x H x D) | 200 x 73 x 242 mm |
Version | |
Version | Europe |
