APC Easy UPS SRV 10000VA RM 230V eBP

Name: APC Easy UPS SRV 10000VA RM 230V eBP
Brand: APC by Schneider Electric
SKU: 4360978
Price: 4543 EUR
Availability: OutOfStock

Chassis type: Rack - Effective power: 10 kW - Apparent power (VA): 10 kVA - Technology: Double conversion (online) - Rack units: 5 U... more

(Review this product)

Gross price: €5,406.17 incl. €863.17 VAT excl. flat transaction fee/shipping costs

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

1-phase rack format online double conversion UPS for 230 V input
With external battery module for an extended battery life,

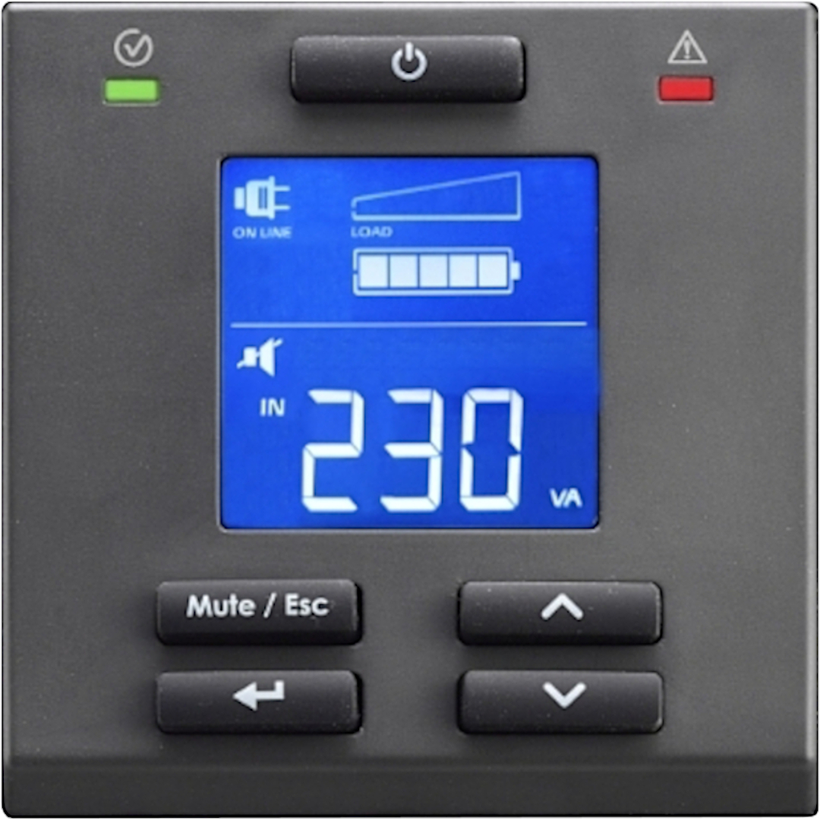

The intuitive LC display provides detailed and precise information,
Intelligent slot for management or relay card,

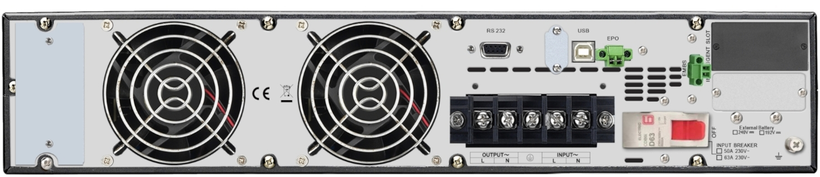

USB and serial RS-232 interfaces, EPO interface
Automatic internal bypass,

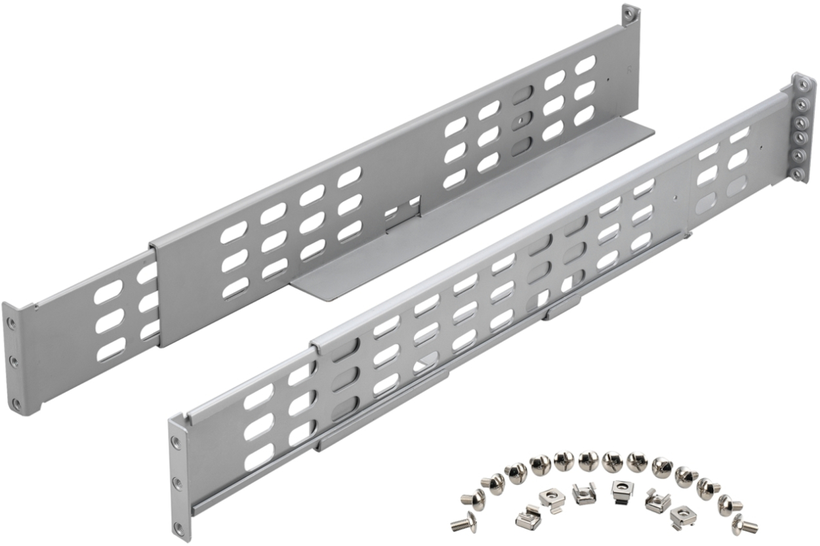

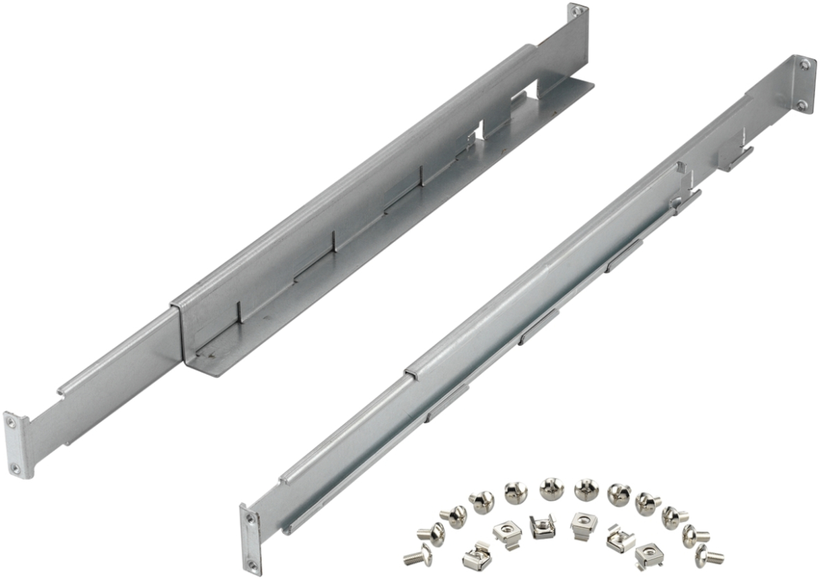

Incl. rail kit

Input: 1-phase hardwire
Output: 1-phase hardwire

Please note: The UPS must be connected by a professional electrician.

Dimensions and weight (power module):
438 x 87 x 615 mm (W x H x D), approx. 16.0 kg

Dimensions and weight (battery pack):
438 x 131 x 606 mm (W x H x D), approx. 63.0 kg

APC Easy UPS SRV 10000VA RM 230V eBP

Product
Product type	UPS for servers / network
Manufacturer’s warranty	2-year bring-in (see manufacturer's website for details)
Performance
Apparent power (VA)	10 kVA
Effective power	10 kW
Max. runtime (50% load)	9.0 min.
Max. runtime (70 % load)	5.0 min.
Max. runtime (100 % load)	2.5 min.
General
Technology	Double conversion (online)
Battery type	VRLA (lead acid)
Battery life	3 - 5 year(s)
Duration	Renewable
Network
SNMP / management	Optional
Physical properties
Chassis type	Rack
Rack units	5 U
Dimensions (W x H x D)	438 x 220 x 615 mm
Weight	79.0 kg
Version
Version	Europe
