APC by Schneider Electric

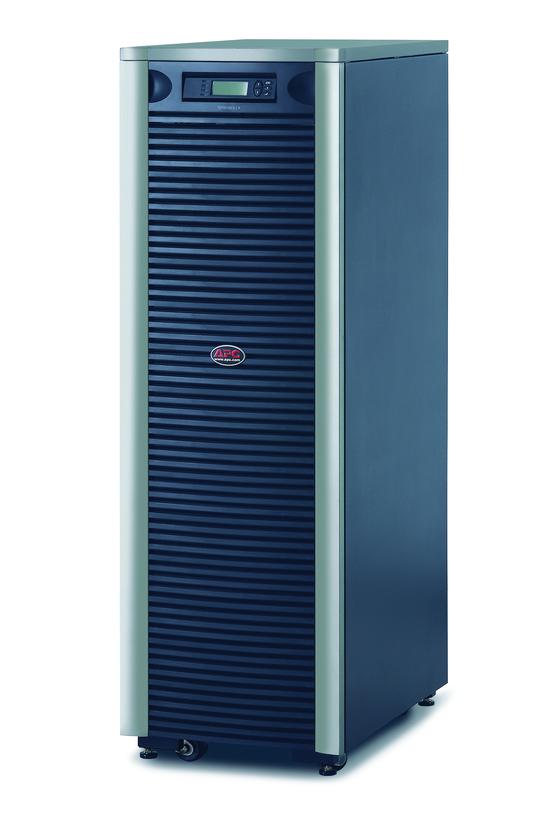

APC Symmetra LX UPS 8kVA Tower Ext. Run

Chassis type: Tower - Effective power: 5600 W - Apparent power (VA): 8000 VA - Duration: Renewable... more
(Review this product)

CHF 18’956.00

Gross price: CHF 20’491.44 incl. CHF 1’535.44 VAT excl.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Redundant UPS system, double-conversion online technology 2 power modules, each with 4 kVA, configurable for 4 kVA N+1 Scalable to 16 kVA N+1 Incl. 9 x battery modules, scalable to 13 Input: 1 or 3-phase hardwire Output: 1-phase hardwire (3-wire) Incl. network management card Important: the UPS must be connected by a professional electrician. Required fuses and wire gauge: 1-phase input/1-phase output: 100 A, 35 mm² 3-phase input/1-phase output: 1 x 100 A/2 x 50 A, 1 x 35 mm²/2 x 10 mm² Please note that increased delivery costs may apply due to product weight.

APC Symmetra LX UPS 8kVA Tower Ext. Run

Product
Product typeUPS (redundant / scalable)
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)8000 VA
Effective power5600 W
Max. runtime (50% load)122.0 min.
Max. runtime (70 % load)83.0 min.
Max. runtime (100 % load)57.0 min.
Physical properties
Chassis typeTower
Dimensions (W x H x D)483 x 1516 x 726 mm
Weight478.0 kg
Network
SNMP / managementIntegrated
General
Redundancy supportedYes
DurationRenewable
Version
VersionEurope

Datasheets

APC Symmetra LX UPS 8kVA Tower Ext. Run - Data sheet 1

File type: PDF

File size: 133.58 KB
