APC by Schneider Electric

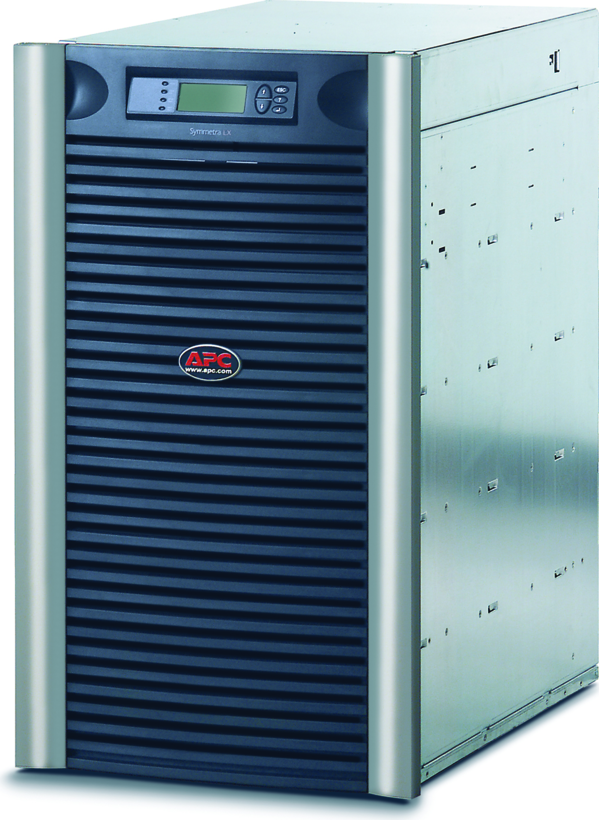

APC Symmetra LX 12kVA Rack UPS 400/230V

Product no.:

Manufacturer no.:

EAN

Chassis type: Rack - Effective power: 8400 W - Apparent power (VA): 12 kVA - Duration: Renewable - Rack units: 19 U... more

CHF 14’586.00

Gross price: CHF 15’767.47 incl. CHF 1’181.47 VAT excl.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Redundant UPS system 3 power modules, each with 4 kVA, configurable for 8 kVA N+1 Scalable to 16 kVA N+1 Input: 1 or 3-phase hardwire Output: hardwire 3-wire (H N + G) Incl. PDU with 8× IEC320-C13, 10× IEC320-C19 Incl. AP9631 network management card Extendable running time Net weight: 243 kg (incl. batteries) Runtime (100% load): 7 minutes Runtime (50% load): 22 minutes . Important: the UPS must be connected by a professional electrician. Required shielding and wire gauge: 1-phase input/1-phase output: 100 A, 35 mm² 3-phase input/1-phase output: 1× 100 A/2x 50 A, 1× 35 mm²/2x 10 mm² . Please note that increased delivery costs may apply due to the high weight of the product.

APC Symmetra LX 12kVA Rack UPS 400/230V

Product
Product typeUPS (redundant / scalable)
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)12 kVA
Effective power8400 W
Runtime (50 % load, max.)20.0 min.
Runtime (100 % load, max.)7.0 min.
Physical properties
Chassis typeRack
Rack units19 U
Dimensions (W x H x D)472 x 838 x 688 mm
Weight243.0 kg
Network
SNMP / managementIntegrated
General
Redundancy supportedYes
DurationRenewable
Version
VersionEurope

Datasheets

APC Symmetra LX 12kVA Rack UPS 400/230V - Data sheet 1

File type: PDF

File size: 132.48 KB
