APC Smart-UPS RT 15kVA 400/230V

Name: APC Smart-UPS RT 15kVA 400/230V
Brand: APC by Schneider Electric
SKU: 510169
Price: 11220 CHF
Availability: InStock

Effective power: 12 kW - Apparent power (VA): 15 kVA - Technology: Double conversion (online) - Input: 1+3-phase - Output: 1+3-phase... more

(Review this product)

Gross price: CHF 12’128.82 incl. CHF 908.82 VAT excl. flat transaction fee/shipping costs

Expected delivery on 25. June. Larger orders may incur extended delivery times.

Only a few items left in stock.

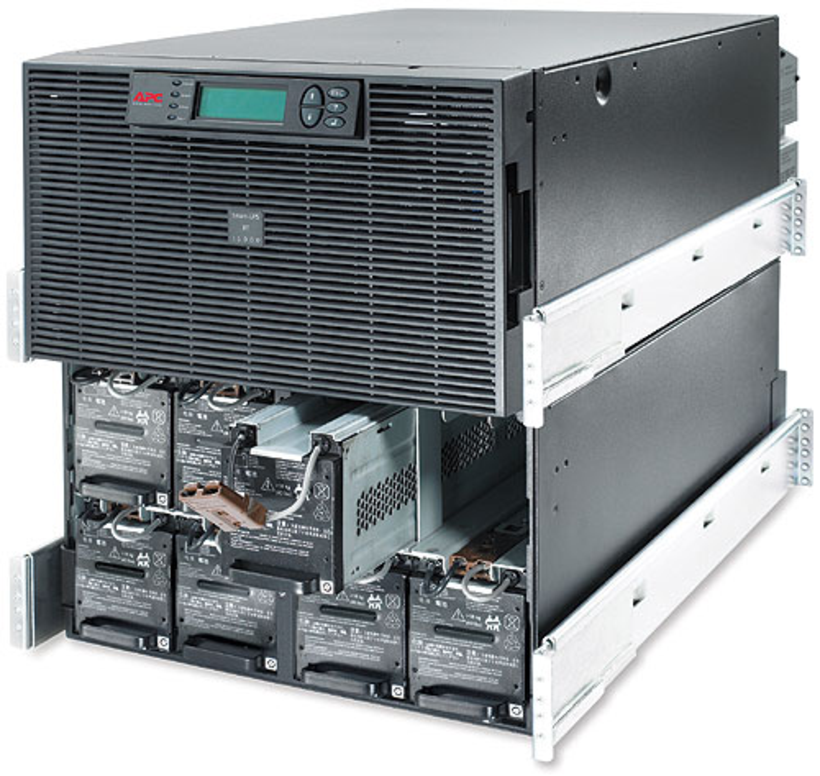

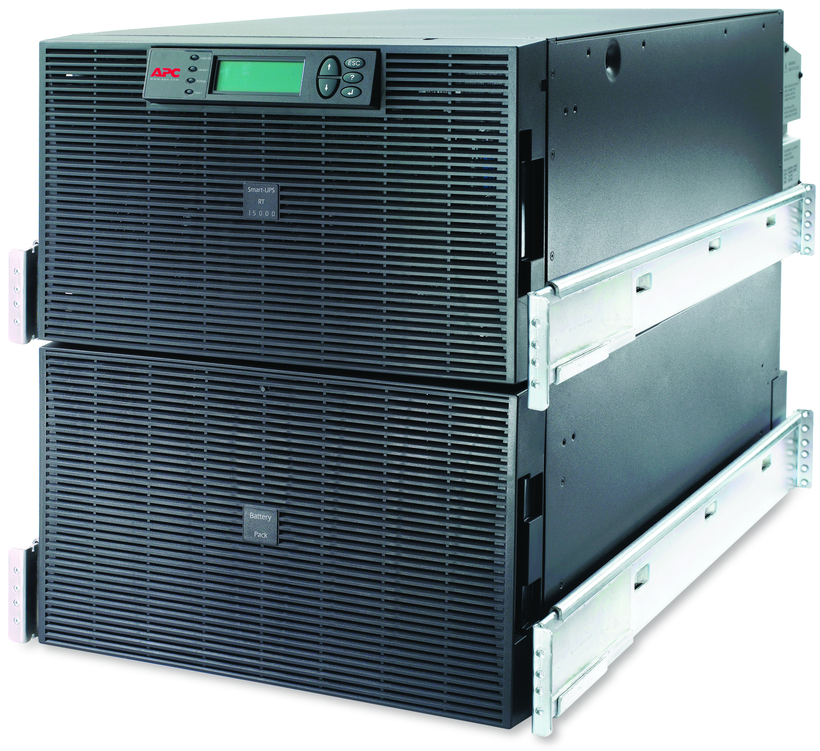

Rack UPS system with rack-mount kit
Required rack space: 12 U
Incl. network management card and serial interface
Internal, automatic bypass

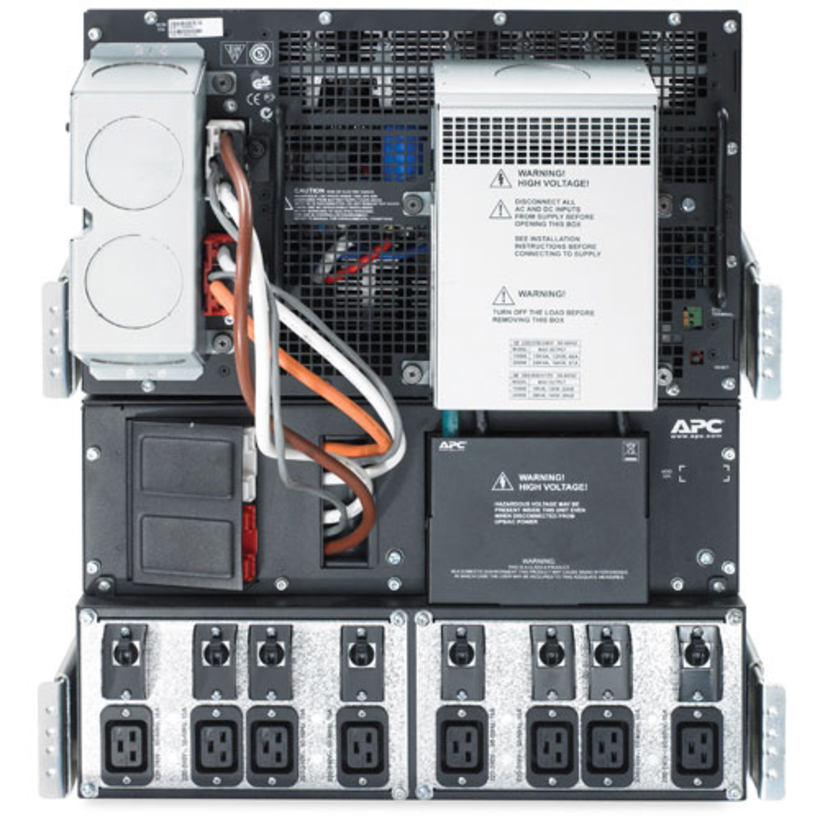

Output: Hardwired 3-wire / 5-wire, 8 x IEC320-C19 (usable with 1-phase operation)

Runtime (12 kW load): approx. 8 min
Runtime (9 kW load): approx. 13 min
Runtime (6 kW load): approx. 22 min

The UPS must be connected by a professional electrician.
Recommended wire gauge (1-phase input): 35 mm²
Recommended wire gauge (3/1-phase input): L1=35 mm², L2/L3=6 mm²
Recommended wire gauge (3/3-phase input): 6 mm²


Please note that higher delivery costs may apply due to product weight.

APC Smart-UPS RT 15kVA 400/230V

Product
Product type	UPS (3-phase)
Manufacturer’s warranty	2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)	15 kVA
Effective power	12 kW
Input	1+3-phase
Output	1+3-phase
Network
SNMP / management	Integrated
General
Technology	Double conversion (online)
Battery type	VRLA (lead acid)
Battery life	3 - 5 year(s)
Physical properties
Dimensions (W x H x D)	432 x 533 x 773 mm
Weight	248.0 kg
Version
Version	Europe
