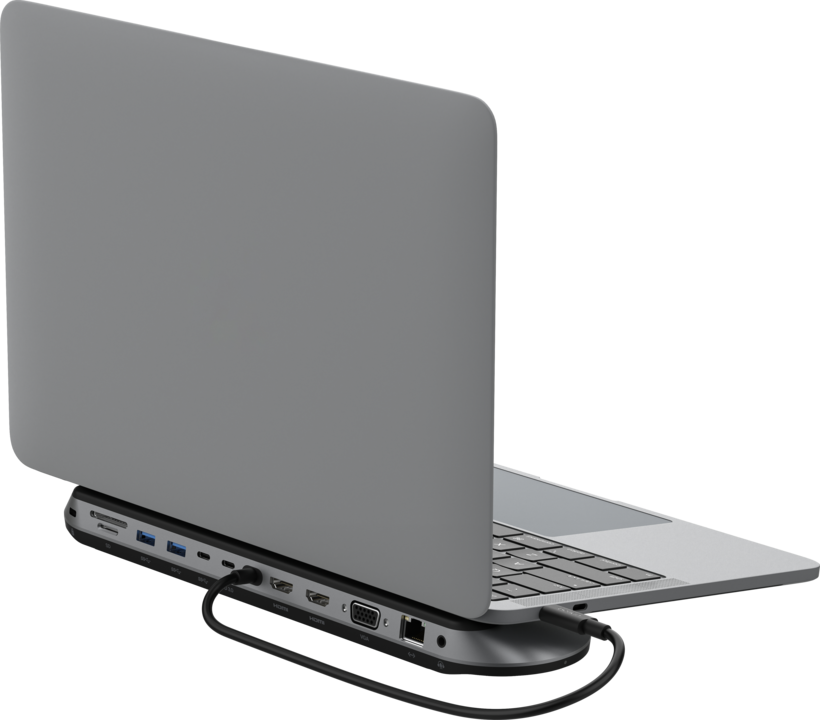

Example installation

Example installation

Belkin

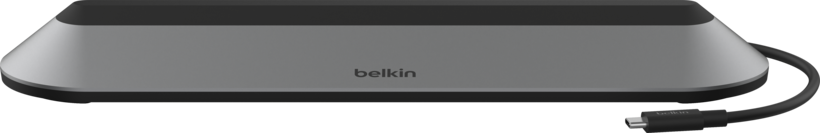

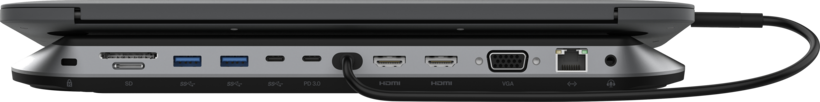

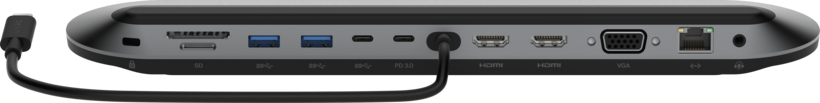

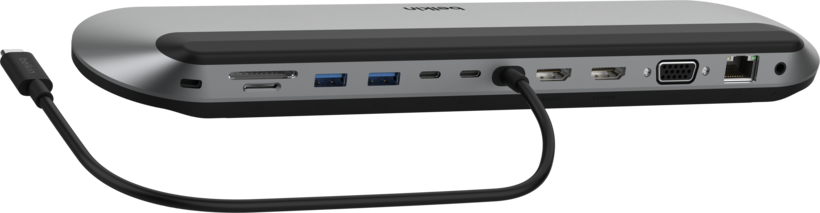

Belkin USB-C 3.0 - VGA+2xHDMI Dock

Product no.:

Manufacturer no.:

EAN

Resolution (max.): 3840 x 2160 at 30 Hz - Connectors: 1 x USB 2.0 Type-A, 1 x 3.5 mm audio female, 1 x VGA, 1 x RJ45, 2 x USB 3.0 Type-C, 2 x HDMI, 2 x USB 3.0 Type-A... more

To see prices, log in or register an account.

Expected delivery on 20. August.

33 items in stock.

The dock is the perfect addition to your desk in the office and at home. It is equipped with 11 ports and even allows for the connection of up to three monitors. Moreover, it supports Power Delivery and has a built-in tablet/notebook stand. 1 x USB-C male (built-in 0.35 m cable) 2 x USB 3.1 Type-C female (1 only for data, 1 for Power Delivery up 100 W, minus 15 W for dock operation) 2 x USB-A 3.1 female 1 x RJ45 female (network, 10/100/1000 Mb/s) 1 x 3.5 mm audio female 1 x VGA female, monitor connection, max. resolution 1920 x 1080 at 60 Hz (one monitor) 2 x HDMI (A) female, monitor connection, max. resolution 3840 x 2160 at 60 Hz (one monitor) 1 x SD card slot 1 x microSD card slot Three monitors can be connected at once Max. resolution when using three monitors: 3840 x 2160 at 60 Hz (HDMI) and 1920 x 1080 at 60 Hz (VGA) Colour: Grey / black

Belkin USB-C 3.0 - VGA+2xHDMI Dock

Product
Product typeDock
Manufacturer’s warranty2-year bring-in (see manufacturer's website for details)
Connectivity
Connectors1 x USB 2.0 Type-A, 1 x 3.5 mm audio female, 1 x VGA, 1 x RJ45, 2 x USB 3.0 Type-C, 2 x HDMI, 2 x USB 3.0 Type-A
Memory card readermicroSD, SD
Security
SecurityKensington standard slot
Performance
Resolution (max.)3840 x 2160 at 30 Hz
Supported monitors3
Requirements
Supported interfaceUSB-C, Thunderbolt 3, Thunderbolt 4
Supported operating systemsApple macOS, Google Chrome OS, Windows
Physical properties
Dimensions (W x H x D)259 x 23 x 89 mm
Weight0.570 kg
General
Compatible devicesUniversal
Version
VersionEurope

Datasheets

Belkin USB-C 3.0 - VGA+2xHDMI Dock - Data sheet 1

File type: PDF

File size: 172.11 KB
