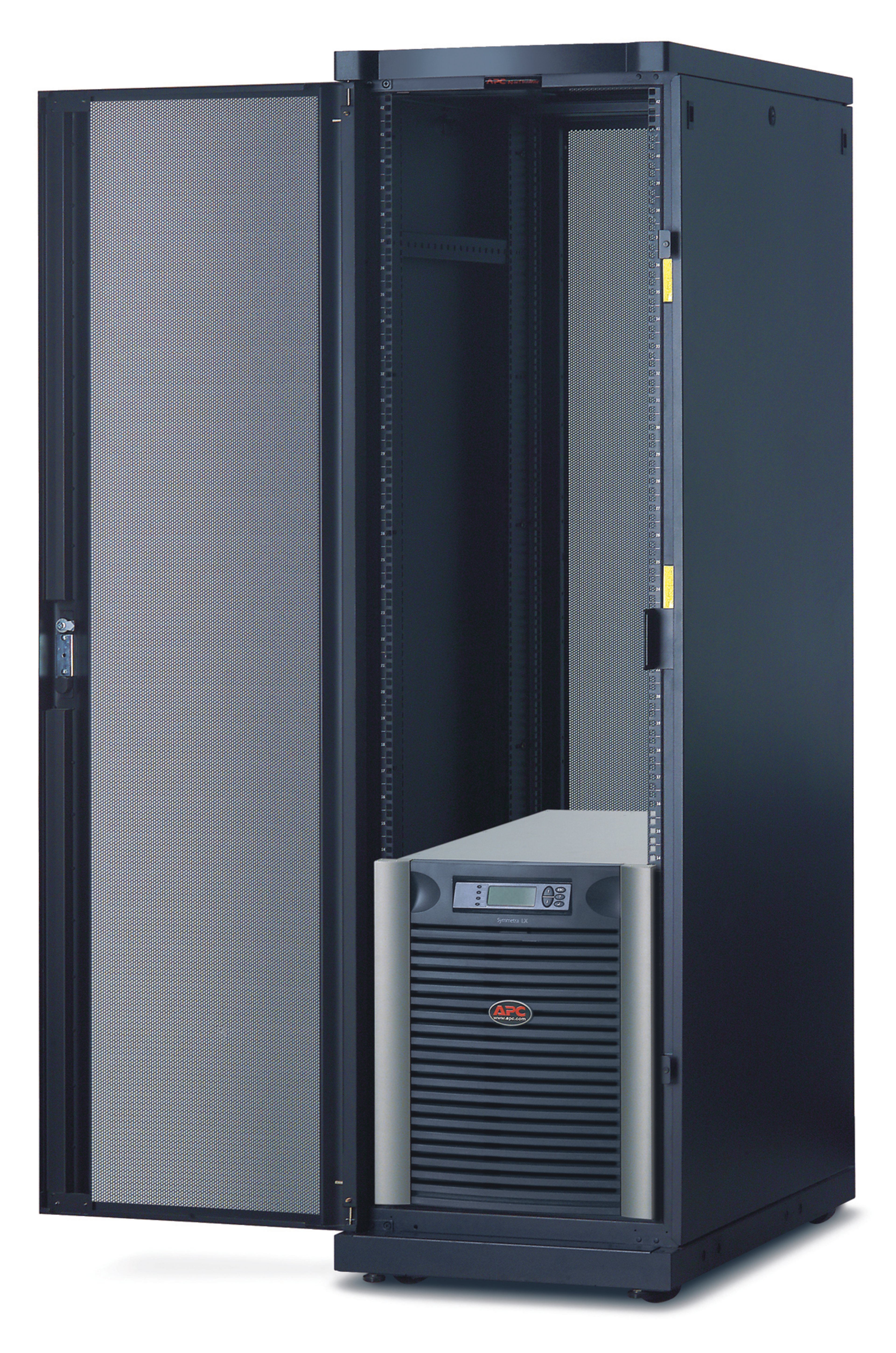

Example installation

APC by Schneider Electric

APC Symmetra LX 8kVA Rack UPS 400/230V

Product no.:

Manufacturer no.:

EAN

Chassis type: Rack - Effective power: 5600 W - Apparent power (VA): 8000 VA - Duration: Renewable - Rack units: 13 U... more

€12,044.00

Gross price: €14,814.12 incl. €2,770.12 VAT excl.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Redundant UPS system, double-conversion online technology 2 power modules, each with 4 kVA, configurable for 4 kVA N+1 Scalable to 8 kVA N+1 Incl. 2 battery modules (not scalable internally) Input: 1 or 3-phase hardwire Output: hardwire 3-wire (H N + G) Incl. PDU with 8 x IEC320-C13, 6 x IEC320-C19 Incl. AP9631 network management card Scalable runtime Important: the UPS must be connected by a professional electrician. Required fuses and wire gauge: 1-phase input/1-phase output: 50 A, 10 mm² 3-phase input/1-phase output: 1 x 50 A/2 x 25 A, 1 x 10 mm²/2 x 4 mm² Please note that increased delivery costs may apply due to product weight.

APC Symmetra LX 8kVA Rack UPS 400/230V

Product
Product typeUPS (redundant / scalable)
Manufacturer’s warranty2-year bring-in (see manufacturer's website for details)
Performance
Apparent power (VA)8000 VA
Effective power5600 W
Runtime (50 % load, max.)20.0 min.
Runtime (70 % load, max.)12.0 min.
Runtime (100 % load, max.)7.0 min.
Physical properties
Chassis typeRack
Rack units13 U
Dimensions (W x H x D)472 x 572 x 688 mm
Weight179.0 kg
Network
SNMP / managementIntegrated
General
Redundancy supportedYes
DurationRenewable
Version
VersionEurope

Datasheets

APC Symmetra LX 8kVA Rack UPS 400/230V - Data sheet 1

File type: PDF

File size: 119.66 KB
