ads-tec

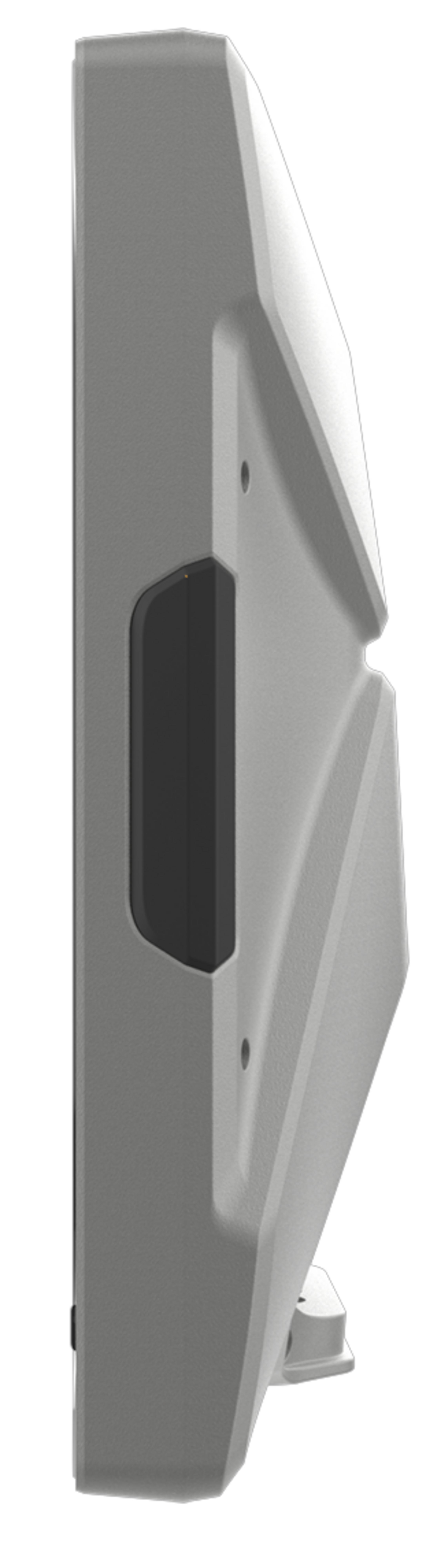

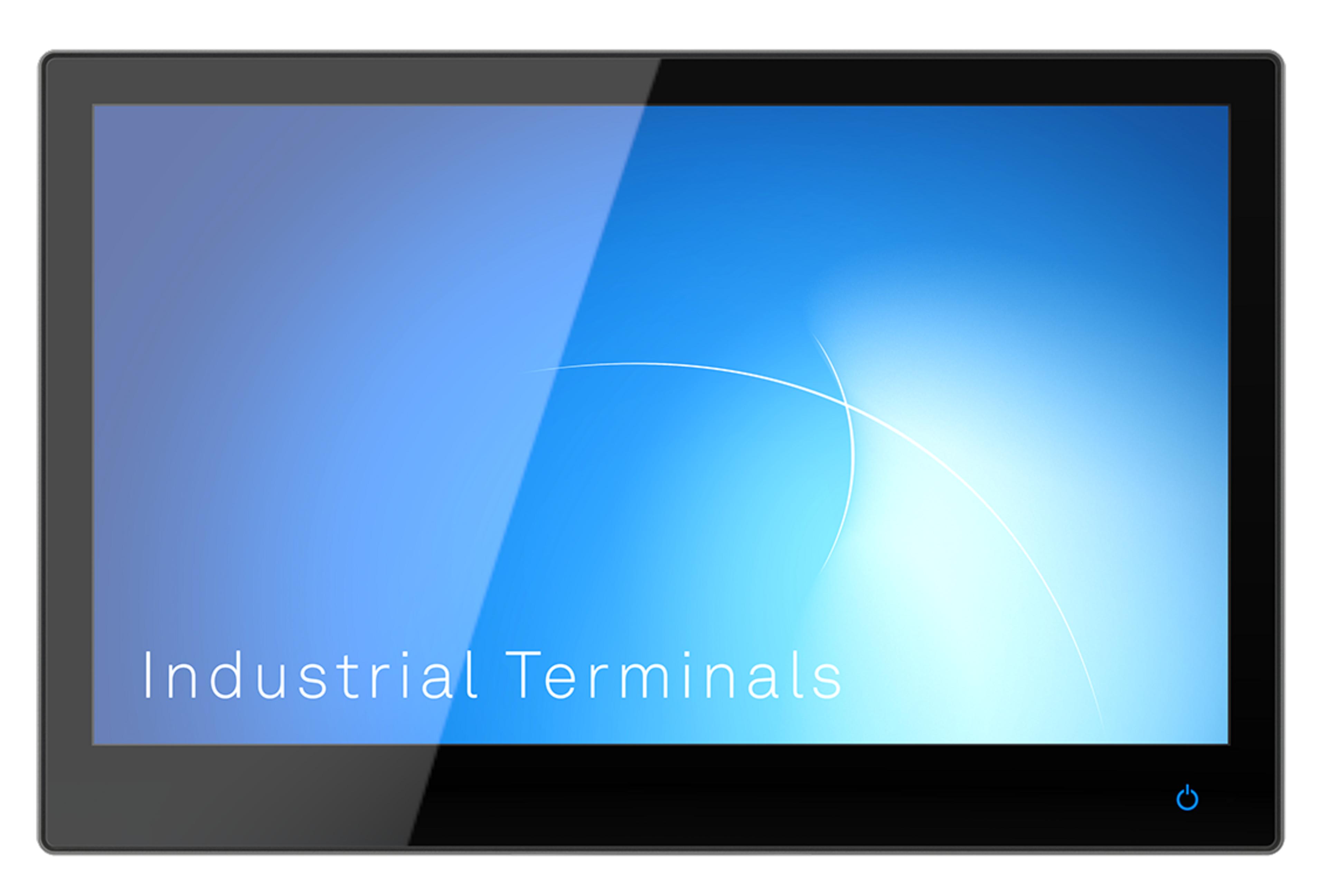

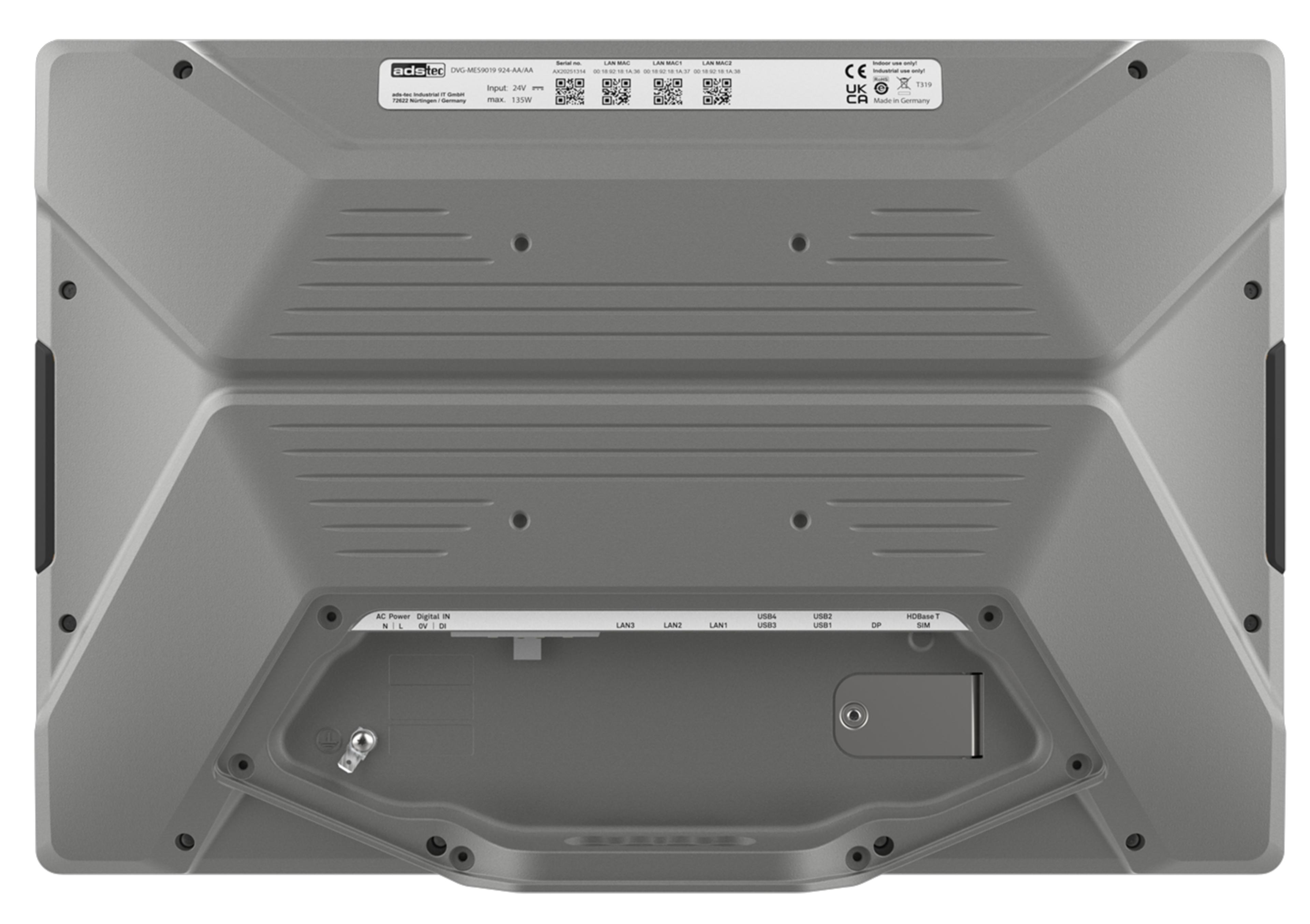

ADS-TEC MES9019 i5 8/128GB Industrial PC
Processor model: Intel Core i5-8365UE, 1.6 GHz - RAM: 8 GB - SSD: 128 GB - Wireless: Bluetooth, WLAN - Protection rating: IP65 (front)... more
3,143.99€3,143.99
Gross price: €3,804.23 incl. €660.24 VAT excl.
Order now and we’ll ship this item as soon as it becomes available.
Currently out of stock.
The powerful MES9000 series industrial terminals are made of die-cast aluminium and are powder-coated. They are easy to integrate into machines or systems and very user-friendly thanks to the large multi-touch display, which can also be operated with gloves. Whether for manual collection of operational or order data, it reliably accompanies you through everyday business. It is suitable for a wide range of applications such as mounting on machines or systems for visualisation and operation.
Operating system: Windows 10 IoT 64-bit Enterprise
Highlights:
- Configurable
- Versatile connection options
- Paperless production for more efficiently designing production processes
- Designed for use in rugged environments
- Celeron or Intel Core i5 processors
Optional:
- 2 x 128 GB M.2 SSD, can be configured as RAID
- 2 x 256 GB M.2 SSD, can be configured as RAID
- Support arm adapter for mounting to back of housing

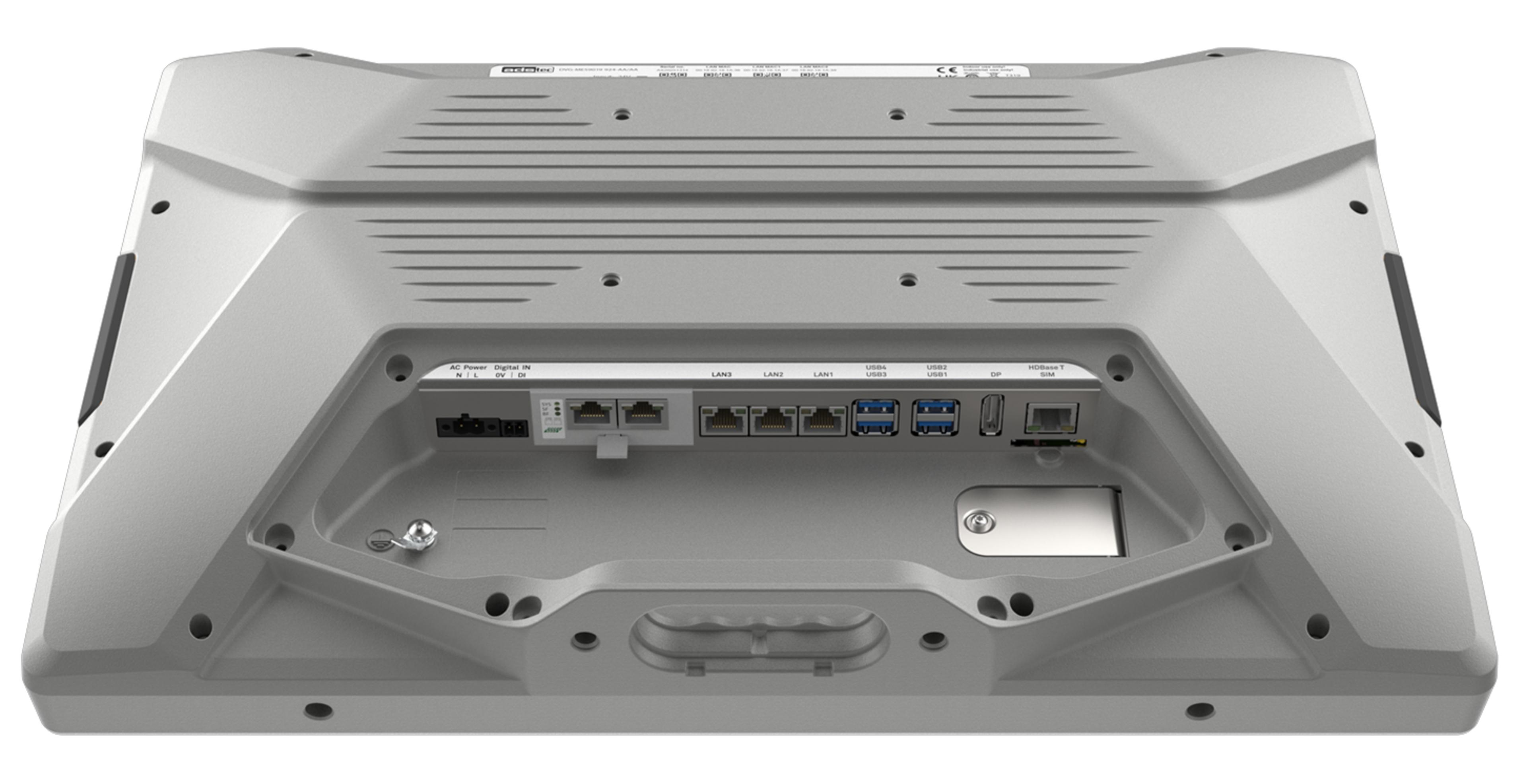

- Interfaces:
1 x Hilscher netJACK slot for fieldbus integration
1 x USB in the front
1 x HDBaseT interface (transmitter)
1 x Integrated antenna for Wi-Fi/Bluetooth module
1 x Integrated antenna in the front for RFID module
Comes with a warranty of 12 months.
Please note:
Please get in touch with your Bechtle account manager if you are interested in a custom configuration.
ADS-TEC MES9019 i5 8/128GB Industrial PC
Product | |
---|---|
Product type | Industrial PC |
Display | |
Display size | 47.0 cm (18.5") |
Physical resolution | 1920 x 1080 FHD |
Touchscreen | Multi-touch |
Touch technology | Capacitive |
Processor | |
Processor family | Intel Core i5 |
Processor model | Intel Core i5-8365UE, 1.6 GHz |
Memory | |
RAM | 8 GB |
RAM type | DDR4 |
RAM (max.) | 32 GB |
RAM modules (built in / max.) | 1 / 1 |
Graphics | |
Graphics | Intel UHD Graphics 620 |
Storage | |
SSD | 128 GB |
SSD form factor | 1 x M.2 PCIe |
Connectivity | |
Network card | 3 x Ethernet 10/100/1000 Mb/s |
Connectors | 1 x DisplayPort, 3 x RJ45, 4 x USB 3.1 Type-A |
Wireless | Bluetooth, WLAN |
Operating system | |
Operating system | Windows 10 IoT 64-bit Enterprise |
Drives | |
Drives | - |
Mounting | |
VESA mounting points | 100 x 100 mm |
Security | |
Protection rating | IP65 (front) |
Special features | |
Special features | Can be operated with gloves, Fanless, Passive cooling |
Features | |
AC adapter | 150 W |
Physical properties | |
Operating temperature | 0 °C to 40 °C |
Chassis type | Display |
Dimensions (W x H x D) | 465 x 310 x 80 mm |
