Dataflex

Dataflex Viewmate + Dual Desk Mount

Mounting options: Desktop - Supported monitors: 2 - VESA mounting points: 75 x 75 mm, 100 x 100 mm - Load capacity (max.): 8.0 kg - Load capacity (min.): 2.0 kg... more
€354.99

Gross price: €429.54 incl. €74.55 VAT excl.

Expected delivery on 26. November.

100+ items in stock.

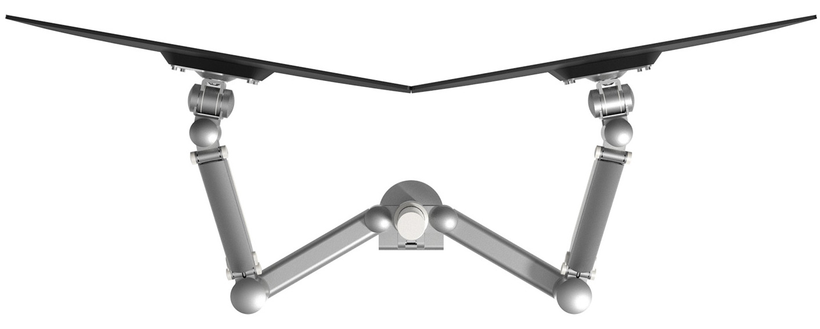

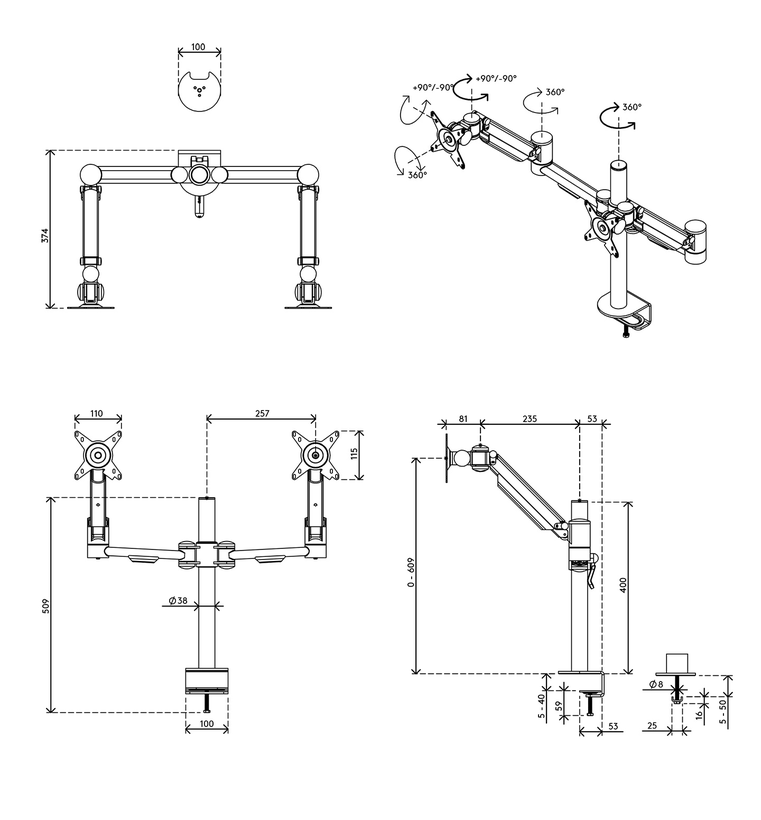

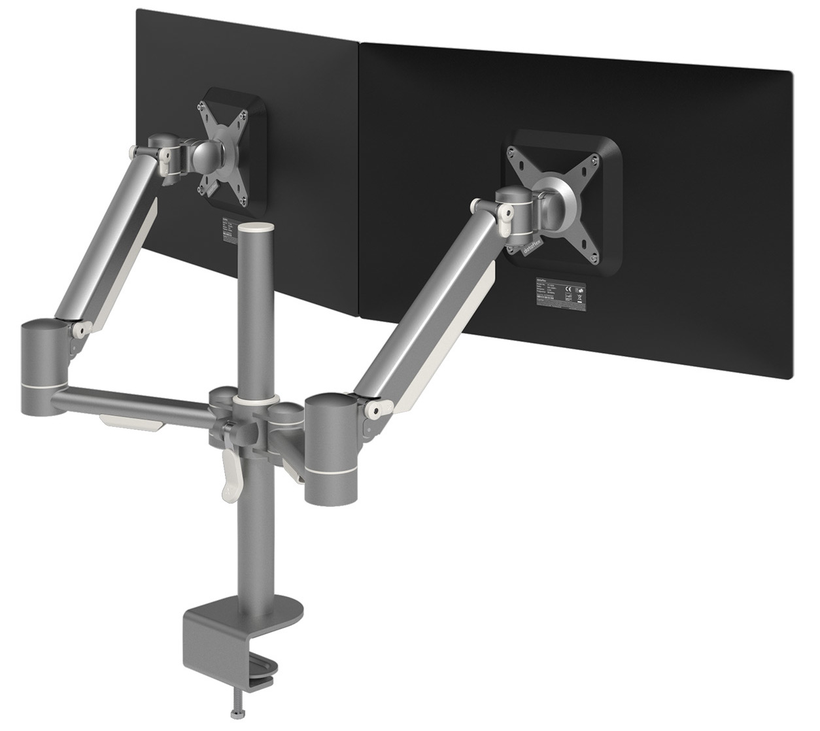

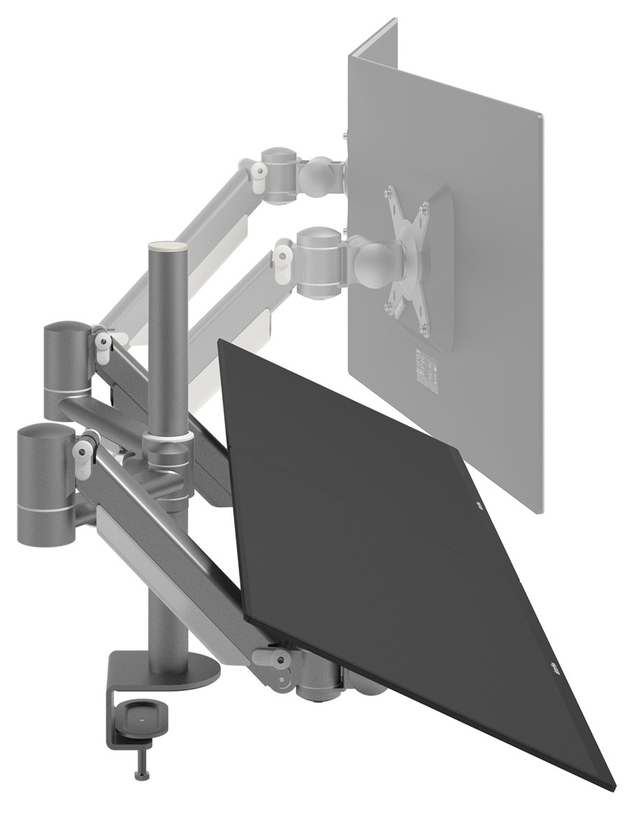

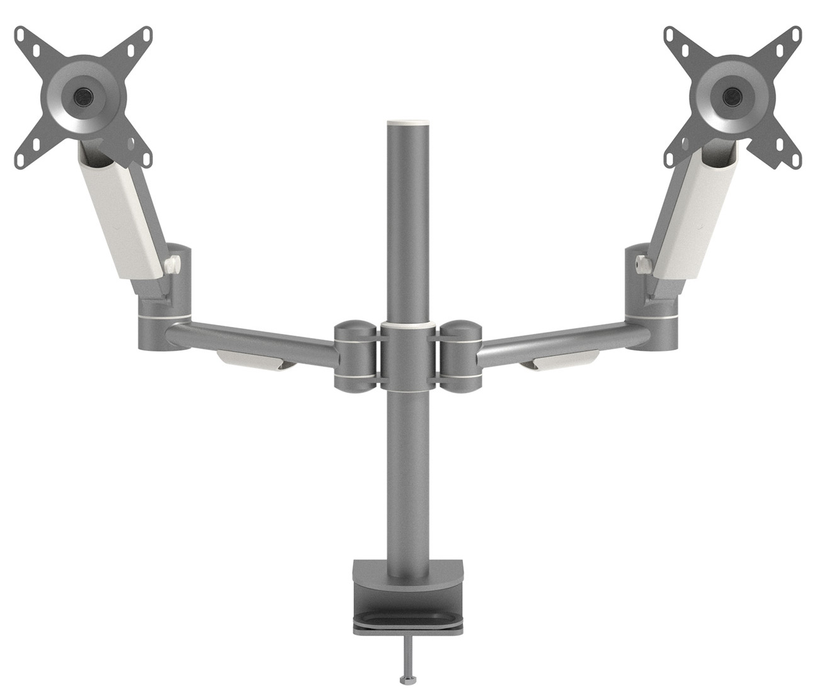

Dataflex Viewmate plus dual monitor arm for mounting two monitors that can be individually adjusted in height and depth. It offers a wide range of height adjustment and flat positioning of your monitors to your desk. Height adjustment range: 609 mm Monitor: ±90° tilt, 360° swivel, 360° rotation Arm: 360° swivel Weight capacity: up to 8 kg per monitor Suitable for desks with a thickness from 5 to 40 mm (clamp) or 50 mm (bolt through) Monitor size limit: Height: 820 mm Comes with a desk clamp mount and bolt-through desk mount Equipped with cable covers and loop ties for cable management Main components made of steel

Dataflex Viewmate + Dual Desk Mount

Product
Product typeTable mount
Manufacturer’s warranty15-year bring-in (see manufacturer's website for details)
General
ApplicationMonitor
Adjustable heightYes, 600 mm
Tilt-90°, +90°, Yes
Swivel360°, Yes
Rotation360°, Yes
Mounting
Mounting optionsDesktop
Supported monitors2
Recommended screen sizes61.0 cm (24.0"), 61.2 cm (24.1"), 62.2 cm (24.5"), 63.3 cm (24.9"), 63.5 cm (25.0"), 66.0 cm (26.0"), 67.3 cm (26.5"), 68.3 cm (26.9"), 68.6 cm (27.0"), 70.1 cm (27.6"), 70.9 cm (27.9"), 71.1 cm (28.0"), 71.6 cm (28.2"), 73.7 cm (29.0"), 75.7 cm (29.8"), 76.2 cm (30.0"), 77.2 cm (30.4"), 79.0 cm (31.1"), 80.0 cm (31.5"), 81.3 cm (32.0"), 86.4 cm (34.0")
VESA mounting points75 x 75 mm, 100 x 100 mm
Load capacity (min.)2.0 kg
Load capacity (max.)8.0 kg
Design
ColourSilver
Version
VersionEurope

Datasheets

Dataflex Viewmate + Dual Desk Mount - Assembly instructions

File type: PDF

File size: 1.19 MB

Dataflex Viewmate + Dual Desk Mount - Data sheet 1

File type: PDF

File size: 1 MB
