APC by Schneider Electric

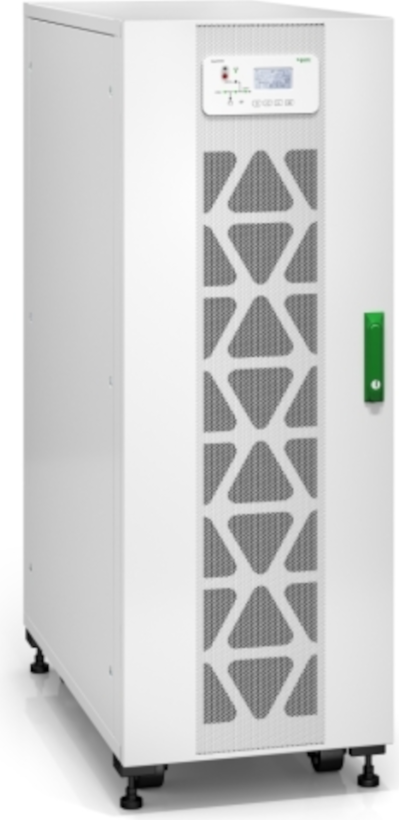

APC Easy UPS 3S 30kVA (4min) USV 400V

Effective power: 30 kW - Apparent power (VA): 30 kVA - Technology: Double conversion (online) - Input: 3-phase - Output: 3-phase... more

€8,515.00

Gross price: €10,303.15 incl. €1,788.15 VAT excl.

Recupel: €0.07 (excl. VAT)

Bebat: €0.05 (excl. VAT)

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Highly efficient, three-phase UPS with modern functions, excellent specs and durable electrical equipment, serial RS232, RS485 and USB interfaces, dry contacts, 2 x internal battery string (2 x empty battery slots), SNMP network card for simple monitoring and administration on Windows available separately. Runtime at 27 kW: approx. 5.1 min Runtime at 21 kW: approx. 7.8 min Runtime at 15 kW: approx. 12.5 min Please note: Important: the UPS must be connected by a professional! Optional monitoring and administration of the UPS only possible on Windows!

APC Easy UPS 3S 30kVA (4min) USV 400V

Product
Product typeUPS (3-phase)
Manufacturer’s warranty1-year limited on-site service (see manufacturer's website for details)
Performance
Apparent power (VA)30 kVA
Effective power30 kW
Input3-phase
Output3-phase
Max. runtime (50% load)12.5 min.
Max. runtime (70 % load)7.8 min.
Max. runtime (100 % load)4.0 min.
Network
SNMP / managementOptional
General
TechnologyDouble conversion (online)
Battery typeVRLA (lead acid)
Battery life3 - 5 year(s)
Physical properties
Dimensions (W x H x D)500 x 1400 x 969 mm
Weight368.0 kg
Version
VersionEurope

Datasheets

APC Easy UPS 3S 30kVA (4min) USV 400V - Feature comparison

File type: PDF

File size: 895.39 KB

APC Easy UPS 3S 30kVA (4min) USV 400V - Brochure

File type: PDF

File size: 3.17 MB

APC Easy UPS 3S 30kVA (4min) USV 400V - Data sheet 1

File type: PDF

File size: 3.94 MB
