APC by Schneider Electric

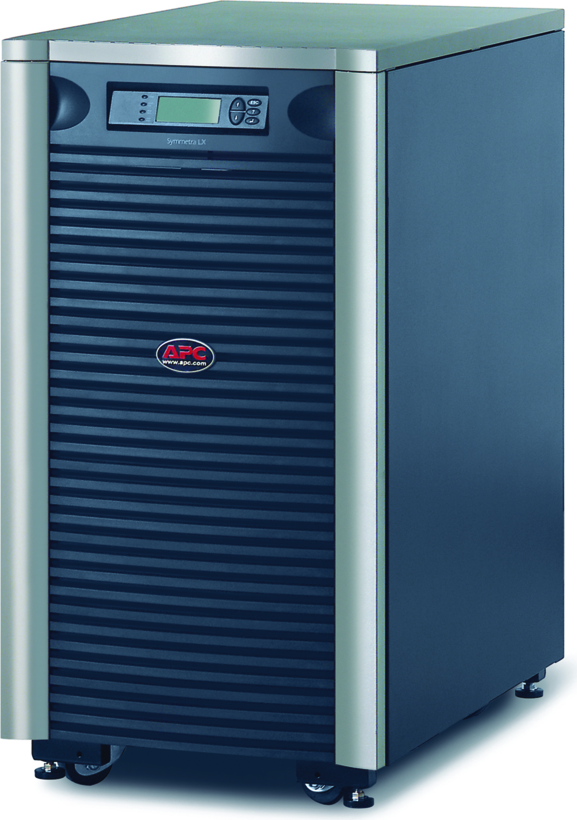

APC Symmetra LX 8kVA Tower UPS 400/230V

Chassis type: Tower - Effective power: 5600 W - Apparent power (VA): 8000 VA - Duration: Renewable... more

€10,791.00

Gross price: €13,057.11 incl. €2,266.11 VAT excl.

Recupel: €0.07 (excl. VAT)

Bebat: €0.05 (excl. VAT)

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Redundant UPS system 2 power modules, each with 4 kVA, configurable for 4 kVA N+1 Scalable to 16 kVA N+1 Input: 1 or 3-phase hardwire Output: 1-phase hardwire (3-wire) Incl. AP9631 network management card Extendable running time Net weight: 220 kg (incl. batteries) Runtime (100% load): 8 minutes Runtime (50% load): 20 minutes . Important: the UPS must be connected by a professional electrician. Required shielding and wire gauge: 1-phase input/1-phase output: 100 A, 35 mm² 3-phase input/1-phase output: 1× 100 A/2x 50 A, 1× 35 mm²/2x 10 mm² . Please note that increased delivery costs may apply due to the high weight of the product.

APC Symmetra LX 8kVA Tower UPS 400/230V

Product
Product typeUPS (redundant / scalable)
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)8000 VA
Effective power5600 W
Max. runtime (50% load)23.0 min.
Max. runtime (100 % load)7.0 min.
Physical properties
Chassis typeTower
Dimensions (W x H x D)483 x 937 x 726 mm
Weight220.0 kg
Network
SNMP / managementIntegrated
General
Redundancy supportedYes
DurationRenewable
Version
VersionEurope

Datasheets

APC Symmetra LX 8kVA Tower UPS 400/230V - Data sheet 1

File type: PDF

File size: 139.79 KB
