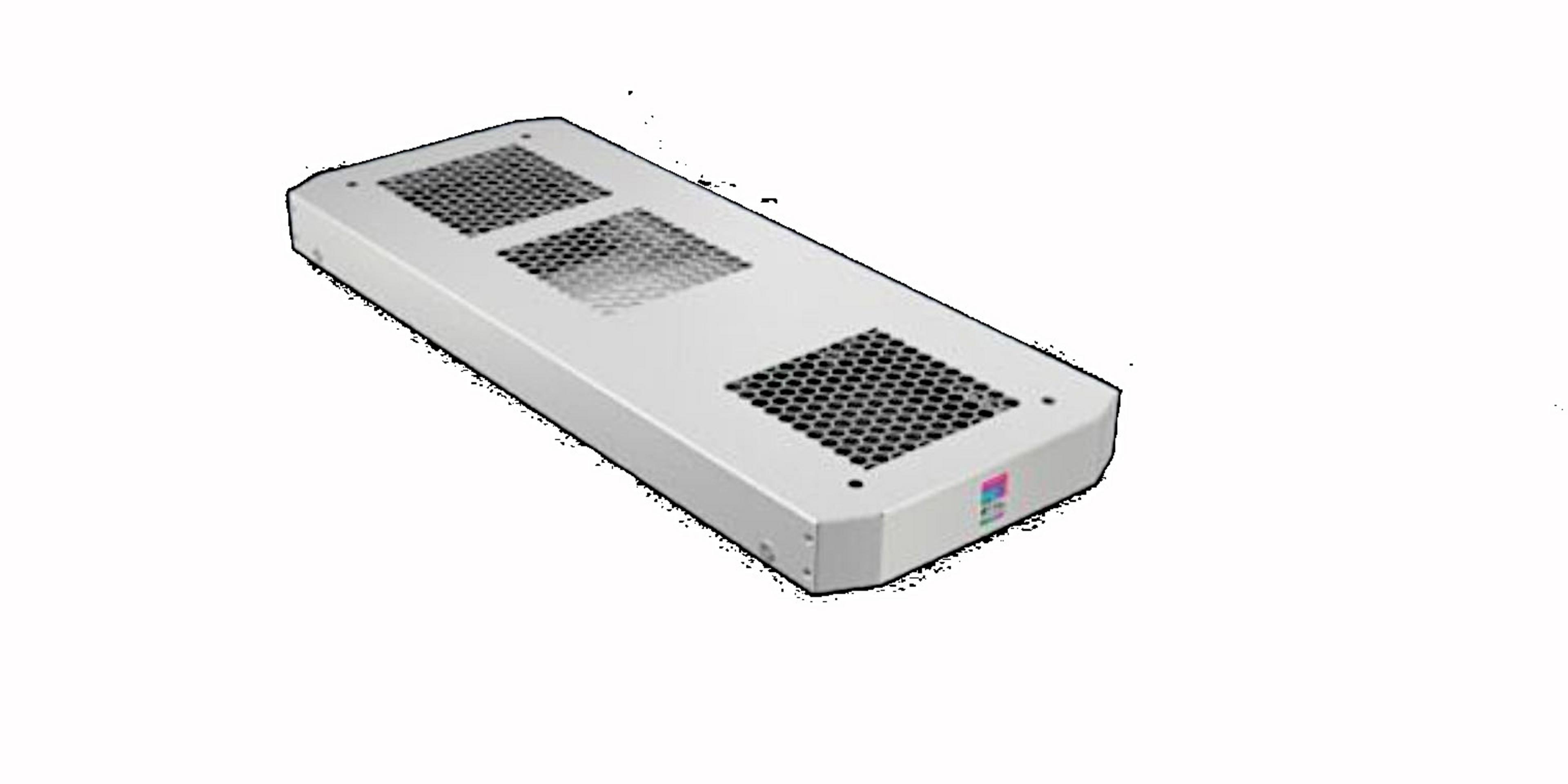

For active ventilation of 600 mm-wide racks and for 600/800 mm-wide TX CableNet
Colour: RAL 7035 (Grey)
Dimensions: 550 x 42 x 220 mm (W x H x D)
Air throughput: 400 m³/h (unimpeded air flow), 280 m³/h (at operating point)
Sound pressure level: 46 dB(A)
Power consumption (watts): max. 22 W
Includes:
- 1 fan unit
- 2 fans (can be expanded up to max. 3)
- Fully wired with C13 IEC socket ready for connection
Please note: when using the roof fan in closed racks with glass doors, an air inlet must be in place.
Either through a ventilated base or a side air inlet grille.
