| Product |
|---|
| Product type | Server |
| Manufacturer’s warranty | 3-year limited on-site service (see manufacturer's website for details) |
| Physical properties |
|---|

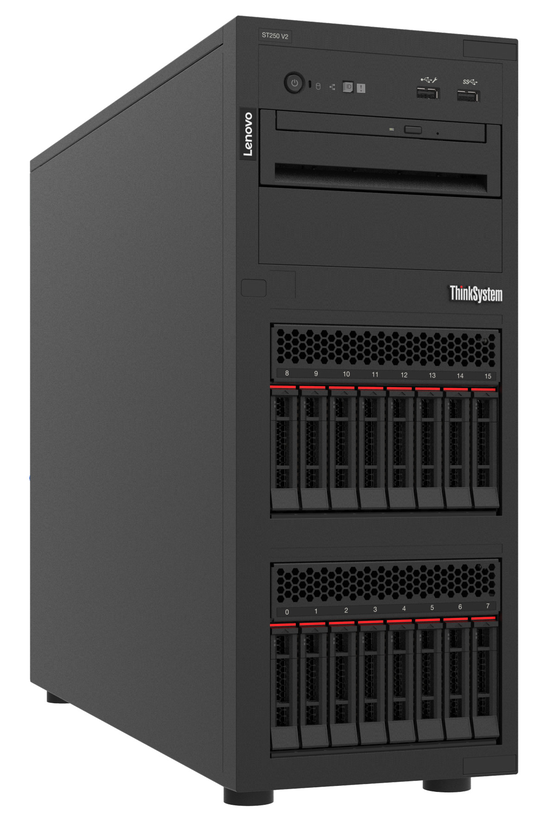

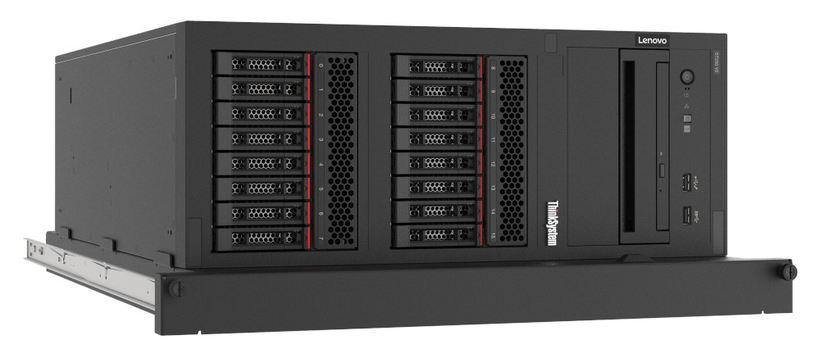

| Chassis type | Tower / rack convertible |
| Rack units | 5 U |
| Dimensions (W x H x D) | 176 x 444 x 578 mm |
| Processor |
|---|
| Server category | Single processor |
| Processor family | Intel Xeon E |
| Processor model | Intel Xeon E-2356G, 3.20 GHz |
| CPU cores | 6 |
| Clock speed | 3.2 GHz |
| CPUs (built-in / max.) | 1 / 1 |
| Storage |
|---|
| Compatible storage media | 6.4 cm (2.5") hot-swap |
| HDD | Optional |
| SSD | Optional |
| HDDs (built-in / max.) | 0 / 8 |
| Memory |
|---|
| RAM | 32 GB |
| RAM type | DDR4 ECC |
| RAM modules (built in / max.) | 1 / 4 |
| RAM (max.) | 128 GB |
| Drives |
|---|
| Drives | - |
| Connectivity |
|---|
| Network card | Broadcom BCM5720 |
| Slots / bays (total) | 1 x PCIe x16, 3 x PCIe x |
| Connectors | 1 x USB 2.0 Type-A, 1 x RJ45 (management), 1 x serial, 1 x VGA, 2 x Gigabit Ethernet, 5 x USB 3.2 Type-A |
| Operating system |
|---|
| Operating system | - |
| Supported operating systems | Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 9.0, Red Hat Enterprise Linux 9.1, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Server 15 Xen SP3, SUSE Linux Enterprise Server 15 Xen SP5, Ubuntu 22.04 LTS 64-bit, VMware ESXi 7.0 U3, VMware ESXi 8.0, VMware ESXi 8.0 U1, VMware ESXi 8.0 U2 |
| Features |
|---|
| Motherboard chipset | Intel C256 |
| RAID controller | RAID 5350-8i |
| RAID levels | 0, 1, 10, 5, JBOD |
| Graphics |
|---|
| Graphics chip | Matrox G200 |
| Performance |
|---|
| PSUs (built in / max.) | 1 / 2 |
| Effective power | 750 W |
| Sustainability |
|---|
| Sustainability certifications | EPEAT Bronze (varies according to country) |
| Version |
|---|
| Version | Europe |
