APC by Schneider Electric

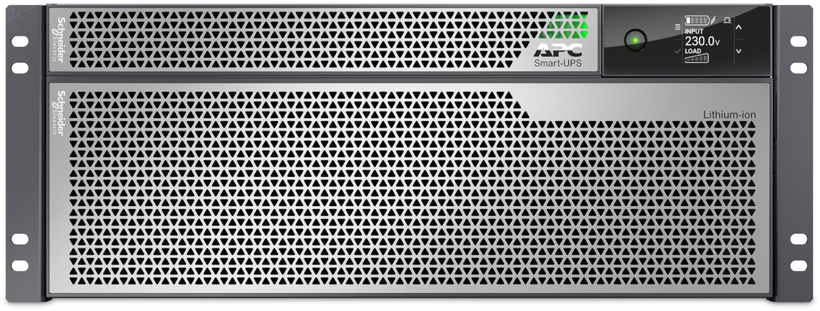

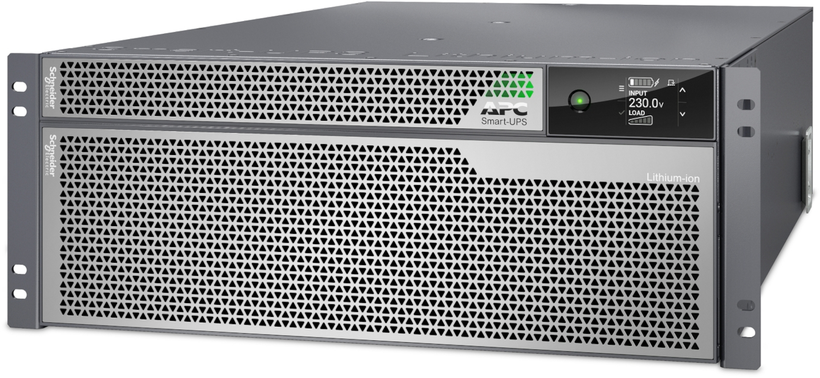

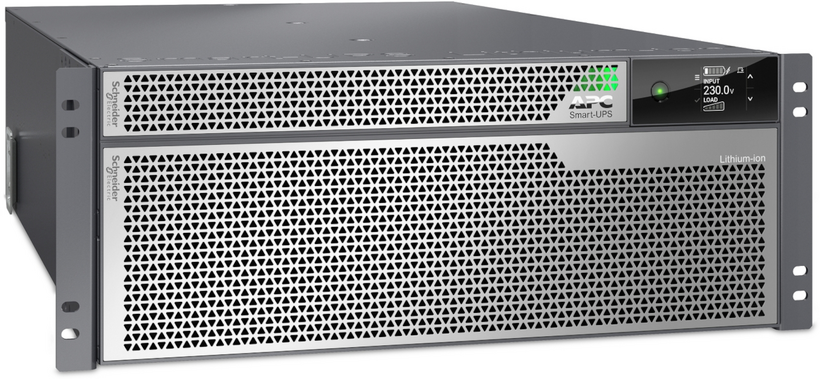

APC Smart-UPS SRT Li-ion 10kVA 230V

Chassis type: Tower / rack convertible - Effective power: 10 kW - Apparent power (VA): 10 kVA - Technology: Double conversion (online) - Rack units: 4 U... more

Kč 312,738.00

Gross price: Kč 378,412.98 incl. Kč 65,674.98 VAT excl.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

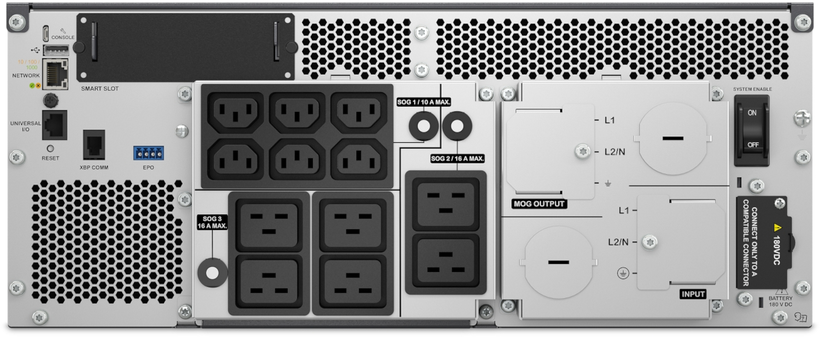

APC Smart-UPS Ultra On-Line Li-ion for 230 V input, Auto-rotating touchscreen display Safe to operate in up to 40 °C environment temperature, Universal I/O port with AP9335T temperature sensor, EPO port incl. EPO terminal block, RJ45 network port, SmartSlot for optional management card, Automatic bypass mode Incl. tower feet and rack-mount kit Input: 1-phase hardwire, 230 V Output: 6 x IEC320-C13, 6 x IEC320-C19, managed in 3 groups Please note: The UPS must be connected by a professional electrician. Recommended fuses and wire gauge: 80 A / 25 mm²

APC Smart-UPS SRT Li-ion 10kVA 230V

Product
Product typeUPS for servers / network
Manufacturer’s warranty5-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)10 kVA
Effective power10 kW
Max. runtime (50% load)12.5 min.
Max. runtime (70 % load)8.5 min.
Max. runtime (100 % load)5.5 min.
General
TechnologyDouble conversion (online)
Battery typeLi-ion
Battery life8 - 10 year(s)
DurationRenewable
Network
SNMP / managementOptional
Physical properties
Chassis typeTower / rack convertible
Rack units4 U
Dimensions (W x H x D)432 x 175 x 832 mm
Weight55.0 kg
Version
VersionEurope

Datasheets

APC Smart-UPS SRT Li-ion 10kVA 230V - Assembly instructions

File type: PDF

File size: 1.46 MB

APC Smart-UPS SRT Li-ion 10kVA 230V - Data sheet 1

File type: PDF

File size: 104.57 KB
